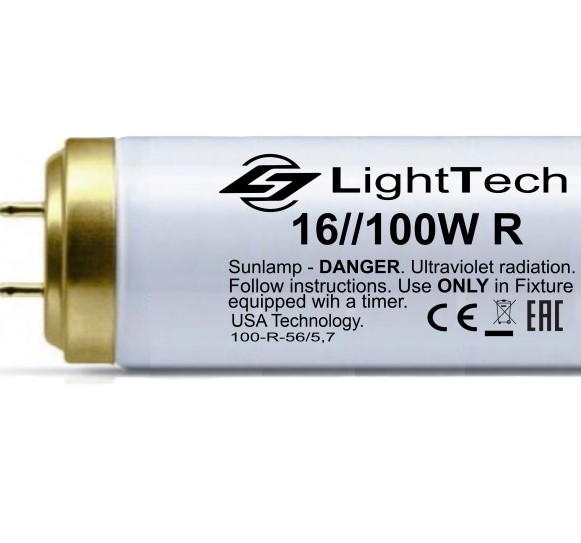

Lâmpada 100W/16 LIGHTECH - LÂMPADA UV PARA FOTOTERAPIA

Dimensions

Lamp Length Nominal [mm]                                                                1760

Base Face to Base Face (max.) [mm]                                             1763,8

Base Face to Pin (max.) [mm]                                                         1770,9 Diameter [mm]                                                                                        38

Base                                                                                                      G13

Reflector angle [°]                                                                                  210

Electrical Data (nominal values) (rapidstart operation not recommended)

Lamp Wattage [W]                                                                                 100

Lamp Current [A]                                                                                  0,86

Lamp Voltage [V]                                                                                   127

Compensation [µF]                                                                                   10

Ballast*                                                                                                   100 W

Recommended Starter (Acc. to EN 60155)

Non reclosure voltage [V]                                                                 >135

Peak voltage [V]                                                                               >600

Preheat time [s]                                                                                 >0.5

Physical Data

UVA Radiant Flux [W] Typical Irradiance in bed [W/m²]

B/A Ratio [%]

EUR (UVB:280-315 nm) USA (UVB:260-320 nm)

Erythema (250-400 nm) [W/m²] Useful Life ( recommended ) [h]

30

200

1,6

3,1

0,051

800

Lamp Color

standard

Te [min]

148

Tm [min]

402

NMSC Ratio (<320 nm />320 nm)

4,8

Erythema (320-400 nm) [W/m²]

0,015

Erythema (250-320 nm) [W/m²]

0,036
